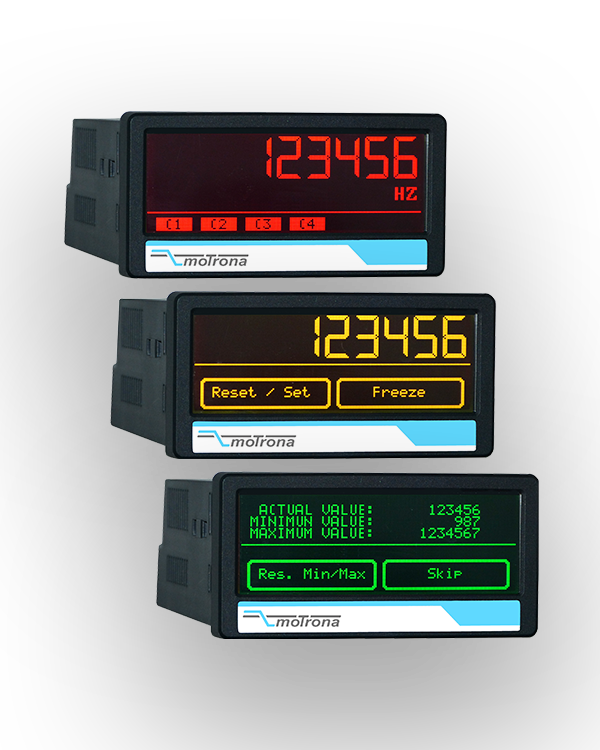

AX350: touchMATRIX® Process Indicator with two 16 bit Analog Inputs

By default the display devices of the touchMATRIX® series provide a 186 x 64 pixel graphic display. Therefore plaintext, symbols and units can be displayed in a variable way. The LED-backlight display enables the graphic representation in the colors red, green and yellow. Due to the intuitive parameterization these colour variations simply can be used event-dependent (e. g. in case of limit values). Maximum flexibility in connectivity and application is proven by arbitrarily combinable, modular configuration with analog output, switching outputs, relay, serial interface (Modbus) and 115 ... 230 VAC. With the resistive touch panel and IP65 the touchMATRIX® displays are ideal for use in the food industry.

The analog display can also visualize strain gauge measured values if these are converted into analog signals via a measuring amplifier integrated in the sensor or an external measuring amplifier.

Product Features:

  • Operating modes for visualization of input 1, input 2, or comninations of inputs (1+2, 1-2, 1x2, 1:2)
  • Two universal 16 bit analog inputs for -10 .... +10 V/0 ... 10 V/0 ... mA/4...20 mA
  • High Accuracy reference ouput 10 V for potentiometers> 1 k0hm
  • Bright and high-contrast display with event-dependent color variations
  • Emulation of a 7-Segment display inclusively icons and units
  • intuitive and easy parameterization by plain text and touchscreen
  • 24 V auxiliary output for encoder supply
  • Totalisator for each input
  • Linearization with 24 control points for each input
  • Numerous features, e.g. tara, averaging filter, sampling time for each input
  • 3.78 x 1.89 inch norm panel housing and IP65 protection

Available Options:

AX350: Basic unit with 2 analog inputs (16 Bit), 3 control inputs

  • Option AC:    Power Supply 115...230 VAC
  • Option AO:    16 bit analog output, 4 control outputs, serial RS232 interface
  • Option AR:    16 bit analog output, 4 control outputs, serial RS 485 interface
  • Option CO:    4 control outputs, serial RS232 interface
  • Option CR:    4 control outputs, serial RS485 interface
  • Option RL:   2 Relay outputs
  • Option IO:    IO-Link Device V1.1

Options can be combined
