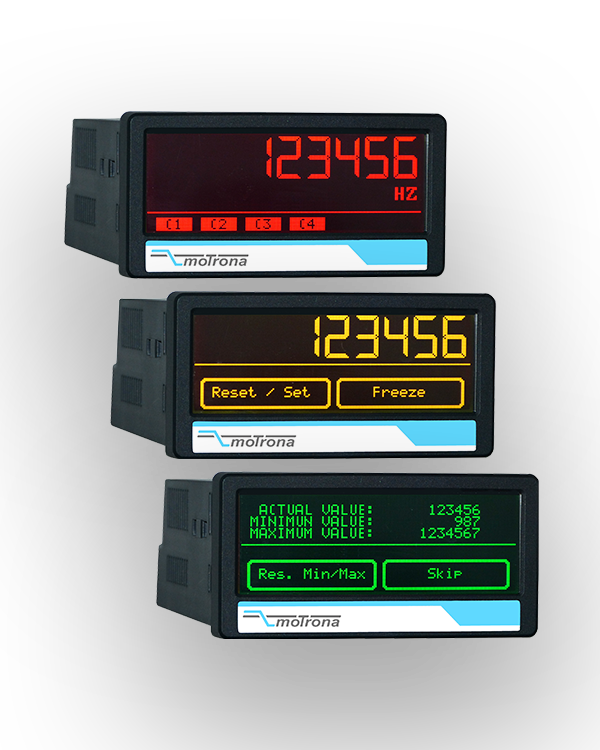

HTL-frequency counter, -tachometer and -speed indicator with touchscreen and graphic display.
Product Features:
- Multi-functional Unit with several operating modes, e.g. speed or position indicator, process meter, counter, timer or stopwatch.
- Universal HTL inputs for encoders / sensors with NPN / PNP / NAMUR characteristic
- Bright and high-contrast display with event controlled color variations
- Emulation of a 7-segment display inclusively icons and units
- Intuitive and easy parameterization by plain text and touchscreen
- 24 V auxiliary output for encoder supply
- input frequencies up to 250 kHz
- Linearization with 24 interpolation points
- Numerous features, e.g. scaling, filtering, start-up suppression
- 96 x48 mm (3.78 x 1.89 inch) norm panel housing and IP65 protection.
Available Options:
- DX350: Basic unit with HTL inputs (A,B), 3 control inputs
- Option AC350: Power supply 115 ... 230 VAC
- Option A0350: 16 bit analog output, 4 control outputs, serial RS232 interface
- Option C0350: 4 control outputs, serial RS232 interface
- Option RL350: 2 relay outputs
Replacement Suggestions:
- ZX122: DX350/RL
- ZX123: DX350/RL/AC
