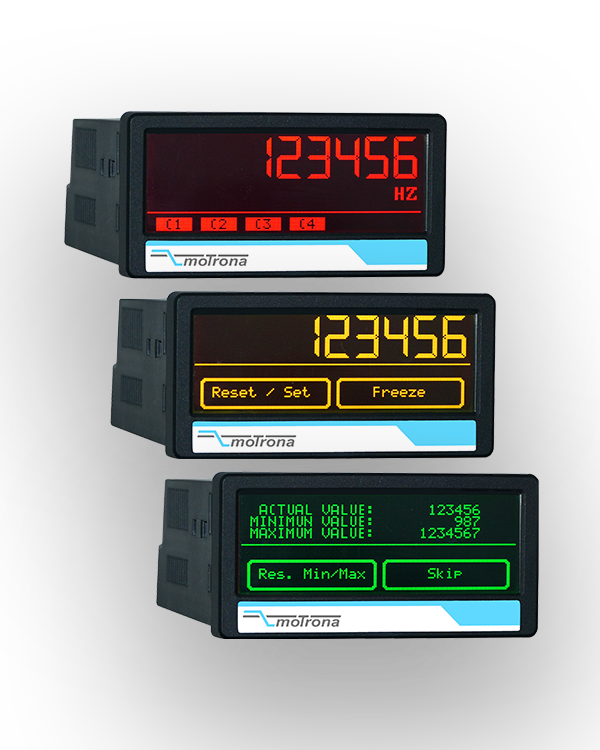

IX350/IX355: touchMATRIX®

IX350: touchMATRIX SSI Indicator for Absolute Encoders

IX355: touchMATRIX Combi Indicator Absolute Position / Speed

By default the display devices of the touchMATRIX® series provide a 186 x 64 pixel graphic display. Therefore plaintext, symbols and units can be displayed in a variable way. The LED-backlight display enables the graphic representation in the colors red, green and yellow. Due to the intuitive parameterization these colour variations simply can be used event-dependent (e. g. in case of limit values). Maximum flexibility in connectivity and application is proven by arbitrarily combinable, modular configuration with analog output, switching outputs, relay, serial interface (Modbus) and 115 ... 230 VAC. With the resistive touch panel and IP65 the touchMATRIX® displays are ideal for use in the food industry.

The IX-devices can display two values from different measurement methods simultaneously. Thus they can handle two units in parallel, e.g. measure and display speed and absolute position.

Product Features:

 Master or Slave operation with clock frequencies up to 1 MHz
 For single turn and multi turn encoders with SSI formats from 10 … 32 Bit
 Bright and high-contrast display with event-dependent color variations
 Emulation of a 7-segment display inclusively icons and units
 Intuitive and easy parameterization by plain text and touchscreen
 5 V / 24 V auxiliary output for encoder supply
 Linearization with 24 control points
 Numerous features, e. g. scaling, filtering, bit blanking etc.
 3.78 x 1.89 inch norm panel housing and IP65 protection

Available Options:

  • IX350: Basic unit with SSI interface, 3 control inputs, 24 VDC encoder supply
  • IX355: Basic unit like IX350, with open-circuit monitoring, 5 / 24 VDC encoder supply
    • Option AC: Power supply 115 / 230 VAC
    • Option AO: 16 bit analog output, 4 control outputs, serial RS232 interface
    • Option AR: 16 bit analog output, 4 control outputs, serial RS485 interface
    • Option CO: 4 control outputs, serial RS232 interface
    • Option CR: 4 control outputs, serial RS485 interface
    • Option RL: 2 relay outputs

Options can be combined
