GV224/GV228

Gv224

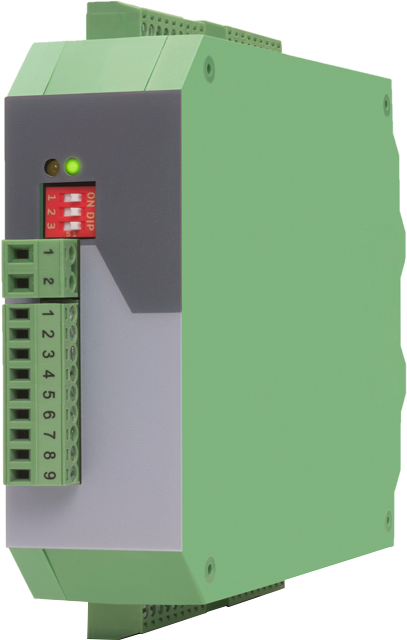

The GV224 is a fast and precise impulse distributor, which has one pulse input and four pulse outputs.

The signal distributors are available with four outputs (GV224) and eight outputs (GV228) as standard.

The special feature of this signal distributor series is the modular design, through which the outputs can be expanded quickly and easily via bus connectors. Two expansion modules EV224 and EV228 with four or eight additional outputs are available for the GV228/EV variant.

With the GT version, this signal distributor series also offers a variant for isolated inputs and outputs.

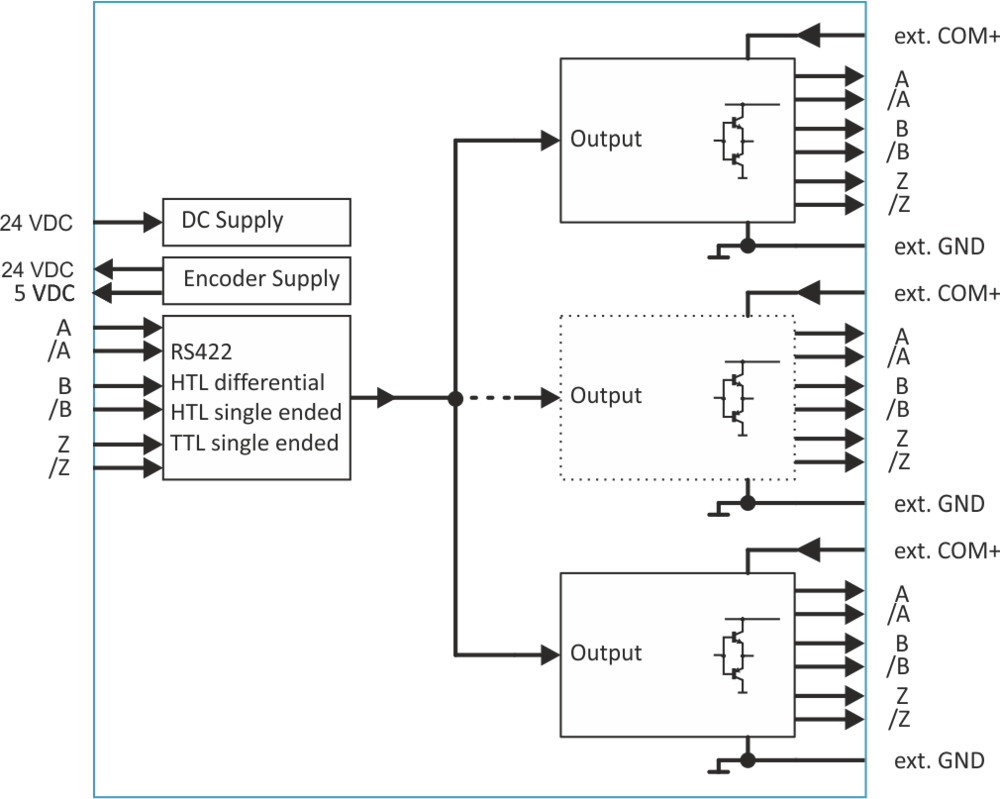

  • 1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
  • Input frequency up to 500 kHz with HTL or 1 MHz with RS422 / TTL
  • 4 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
  • BUS interface for quick and easy expansion of the number of outputs
  • Power supply 10 ... 30 VDC
  • Signal delay time 160 ns
  • Input level at RS422 / TTL (differential voltage > 0.5 V),
  • Input level at HTL differential (differential voltage > 2 V),
  • Input level at HTL asymmetric low: 0 ... 6 V, high: 8 ... 40 V
  • Input level at TTL (asymmetrical): LOW < 0.8 V, HIGH >2.0 V
  • Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
  • Dimensions W x H x D = 34 x 118 x 140 mm (1,34 x 4,65 x 5,51")
