The IT210 retains the features that made the IT251 successful, all while improving functionality creating a more powerful pulse divider.
The IT210 is a universal interface using with incremental measuring systems with diverse functions, such as: Level conversion (RS422, HTL single ended, HTL differential, TTL and vice versa), Division of two-track A / B pulses with adjustable ratio 1: 1 to 1: 2048, Division of the Z pulse with adjustable ratio 1: 1 to 1: 256, External HTL signals for various functions, Implementation between the two types of representations for the direction of rotation (A/B 90 °, A/B Dir and vice versa, Division possible)

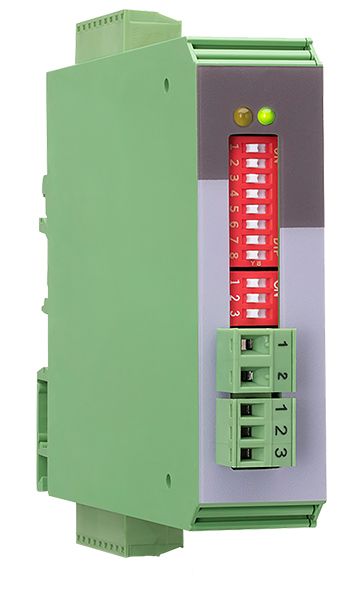

All settings are made on the DILL switches on the housing. The device consists of a compact housing with screw terminals and can be mounted on a DIN rail.
- Pulse input in format A, /A, B, /B, Z, /Z [RS422, HTL]
- Pulse input in format A, B, Z [HTL]
- Input frequency up to 1 MHz
- Pulse output in format A, /A, B, /B, Z, /Z [RS422, HTL]
- Pulse output in format A, B, Z [HTL]
- Power supply 9 ... 30 VDC
- Settings via DIL switches
- Level conversion (RS422, HTL single ended, HTL differential, TTL and vice versa)
- Division of two-track A / B pulses with adjustable ratio 1: 1 to 1: 2048
- Division of the Z pulse with adjustable ratio 1: 1 to 1: 256
- External HTL signals for various functions
- Implementation between the two types of representations for the direction of rotation (A / B 90 °, A/B Dir and vice versa, Division possible)
- Snap-on housing for top hat rail
(acc. EN 60715) - Dimension (B x H X T) 22,5 x 102 x 102 mm
