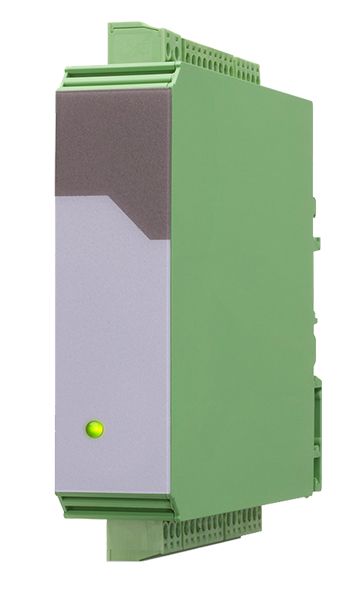

The ZU210 is the functionally compatible and more powerful successor to the ZU252 Signal Converter.
The ZU210 converts counting pulses or position values up to 1 MHz almost instantaneously into analog or serial signals. Possible input formats are TTL / RS422, HTL differential, HTL PNP and HTL NPN. The converted signals are then available with a resolution of 16 bits or as digital information via Modbus RTU for further processing.
- Pulse inputs A, B [HTL], A, /A, B, /B [RS422, HTL]
- Input frequency up to 1 MHz [RS422], 200 kHz [HTL]
- Analog output ±10 V or 0/4 ... 20 mA, 16 Bit
- Power supply 18 ... 30 VDC
- Snap-on housing for top hat rail (according to EN 60715)
- Setup via operator software OS6.0
- Serial RS232- / RS485 interface
The USB interface can be used as follows:
- Parameterize the device during commissioning
- Change parameters during operation
- Reading out actual values via PC
The previous RS232-interface is still available with its full function range. No further changes were made and nothing has been chaged in terms of functionality.
Devices are currently delivered without USB. After these devices have been sold out. Only devices with a mini USB socket will be delivered.
