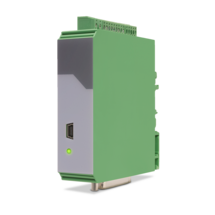

FP210: Signal Converter Frequency >>> Parallel

The FP210 signal converter receives incremental signals via its frequency input and transfers them precisely and quickly into a parallel binary, gray code or BCD format. It processes an input frequency up to 1 MHz. It is also possible to change the input to start-stop signals or SSI signals.

Technical data

• Frequency inputs A, B [HTL], A, / A, B, / B [RS422, HTL]
• 3 control inputs (hold) for PNP signals [10 ... 30 VDC]
• SSI input in the format DATA +, DATA-, CLOCK +, CLOCK- up to 32 bits
• Start-stop interface for absolute transducers and magnetostrictive sensors
• Input frequency up to 1 MHz
• 25-bit parallel output push-pull in BCD, binary or Gray code format
• Power supply 18 ... 30 VDC
• Compact housing for mounting on 35 mm top-hat rail (according to EN 60715)
