Slide Gate & Valve Position Sensors Key Features

  • Absolute Encoder-Based Feedback
  • 4-20 mA or Two-Relay Output
  • Valve, Gate, or Shaft Position Feedback
  • Non-volatile Memory
  • UL and CE Approvals
  • Easy 1-, 2-, or 3-Point Calibration

4-20 mA Slide Gate & Valve Position Sensors Product Overview

All six Shaft Angle Position Feedback Monitors in the SG1000 Series utilize absolute rotary encoders to provide independent and accurate feedback of a slide gate's or a valve's position to an external device such as a PLC or optional PM500 Process Meter Display Unit. Models are housed in a rugged, Explosion-Proof/Dust-Ignition Proof cast aluminum enclosure that is dirt, dust, grease-proof, and water resistant. In the case of a power failure, all SG1000s are designed to retain accurate gate position.

Two-Relay Slide Gate Position Sensor Product Overview

The SG1000RA is a stand-alone system for those looking to accurately monitor gate end-point positioning or equipment. With a two-relay output, the SG1000RA can control equipment, lights, horns, or other various facility alarm systems. After a simple set-up, the SG1000RA triggers its relays once the slide gate reaches its fully-open or fully-closed positions. Just like the other SG1000 models, the SG1000RA is housed in an explosion-proof enclosure that is dirt, dust, grease-proof, and water resistant.

Product Categories

SG1000A

SG1000(A, RA)

SG1000B

SG1000B

SG1000C

SG1000C

SG1000D

SG1000D

SG1000E

SG1000E

SG1000A

SG1000F

Angle Position Monitor Selection Guide

 pdf    730.00 KB    20    mrenfroe    11/7/19, 9:47 AM   Download

Products

SG1000A

SG1000A Rotational Position Sensor

Provides accurate slide gate or valve position feedback where the end-to-end rotation is a full span from a 1/4 of a turn up to six full turns before reversing. Provides 4-20 mA output and interfaces with optional PM500 Process Meter as a remote display unit or a PLC. Housed in an explosion-proof, NEMA 4X enclosure.
Product Details
SG1000B

SG1000B Linear Position Sensor

The SG1000B slide gate monitor provides accurate gate position feedback when measuring linear position where the end-to-end linear movement can be tracked via a telescopic-arm, which converts the linear position to an angular movement. Provides 4-20 mA output and interfaces with optional PM500 Process Meter as a remote display unit or a PLC. Housed in an explosion proof, NEMA 4X enclosure.
Product Details
SG1000C

SG1000C Single-Turn Shaft Position

The SG1000C single-turn position monitor provides accurate shaft position feedback where the end-to-end rotation is exactly 360 degrees before reversing, or when the process just repeats itself after turning 360 degrees without reversing. Provides 4-20 mA output and interfaces with optional PM500 Process Meter as a remote display unit or a PLC. Housed in an explosion proof, NEMA 4X enclosure.
Product Details

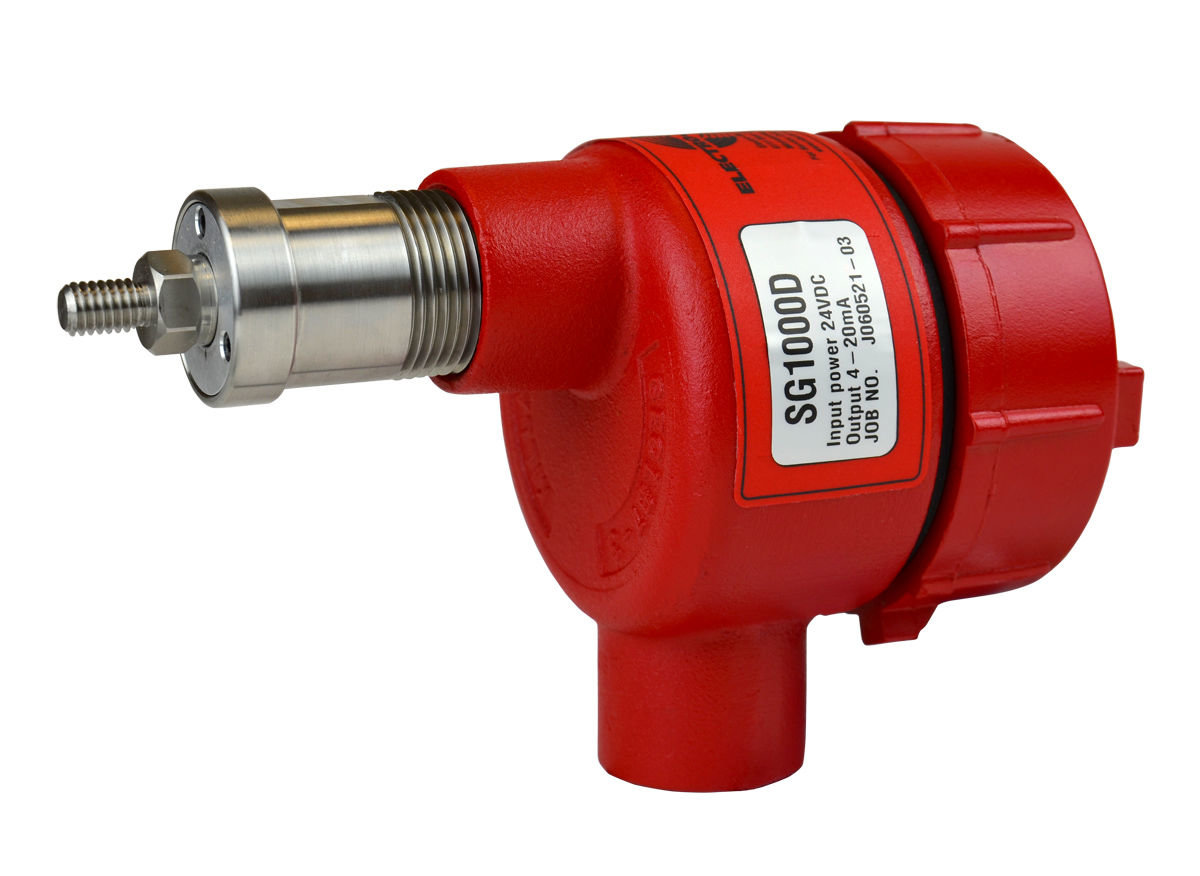

SG1000D

SG1000D Valve Position Sensor

The SG1000D valve position monitor provides accurate valve position feedback where the end-to-end rotation is anywhere between 0 and 360 degrees before reversing. Provides 4-20 mA output and interfaces with optional PM500 Process Meter as a remote display unit or a PLC. Housed in an explosion-proof, NEMA 4X enclosure.
Product Details

SG1000E Subturn Shaft Position

Provides accurate shaft position feedback where the end-to-end rotation is anywhere between 0 and 130 degrees before reversing. Provides 4-20 mA output and interfaces with optional PM500 Process Meter as a remote display unit or a PLC. Housed in an explosion proof, NEMA 4X enclosure.
Product Details
SG1000F

SG1000F High Resolution Rotation

Provides accurate shaft position, slide gate, and valve position feedback where the end-to-end rotation is a full span anywhere between a 1/12th of a turn up to two full turns before reversing. Provides 4-20 mA output and interfaces with optional PM500 Process Meter as a remote display unit or a PLC. Housed in an explosion-proof, NEMA 4X enclosure.
Product Details
SG1000RA

SG1000RA Relay Output

An accurate and reliable slide gate or valve end-point position monitor with a 2-Relay output. Powered by 115 - 230VAC ±10% with the ability to control equipment, horns, lights, or other facility alarm systems. Housed in an explosion-proof, NEMA 4X enclosure and comes with UL Class I, Div. I (C, D) and Class II, Div. I (E, F, G) approvals.
Product Details
PM500

PM500 Process Meter

The PM500 is a fully programmable process meter with two 4-20 mA sensor inputs that can be scaled to any user-selected units. It can easily display any production variable such as temperature, position, or rate. The ability to detect, convert, and display the input signal makes the PM500 an inexpensive solution to many industrial applications.
