HazardPRO Shaft RPM Sensor
Features
• Direct connection to HazardPRO node

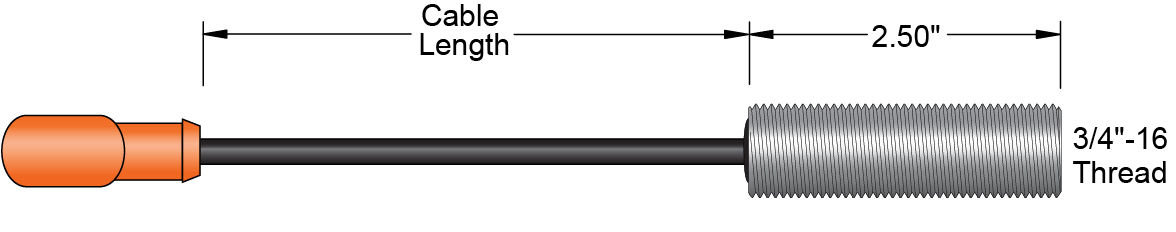

• Fixed cable with M12 connector included
• 2-wire (current loop type)
• Installs using EZ 1 Mag bracket assembly
• Optional mounting magnet
• Optional stainless steel jacketed cable
• Class II, Div 1, Groups E, F, G, Class III, Div 1

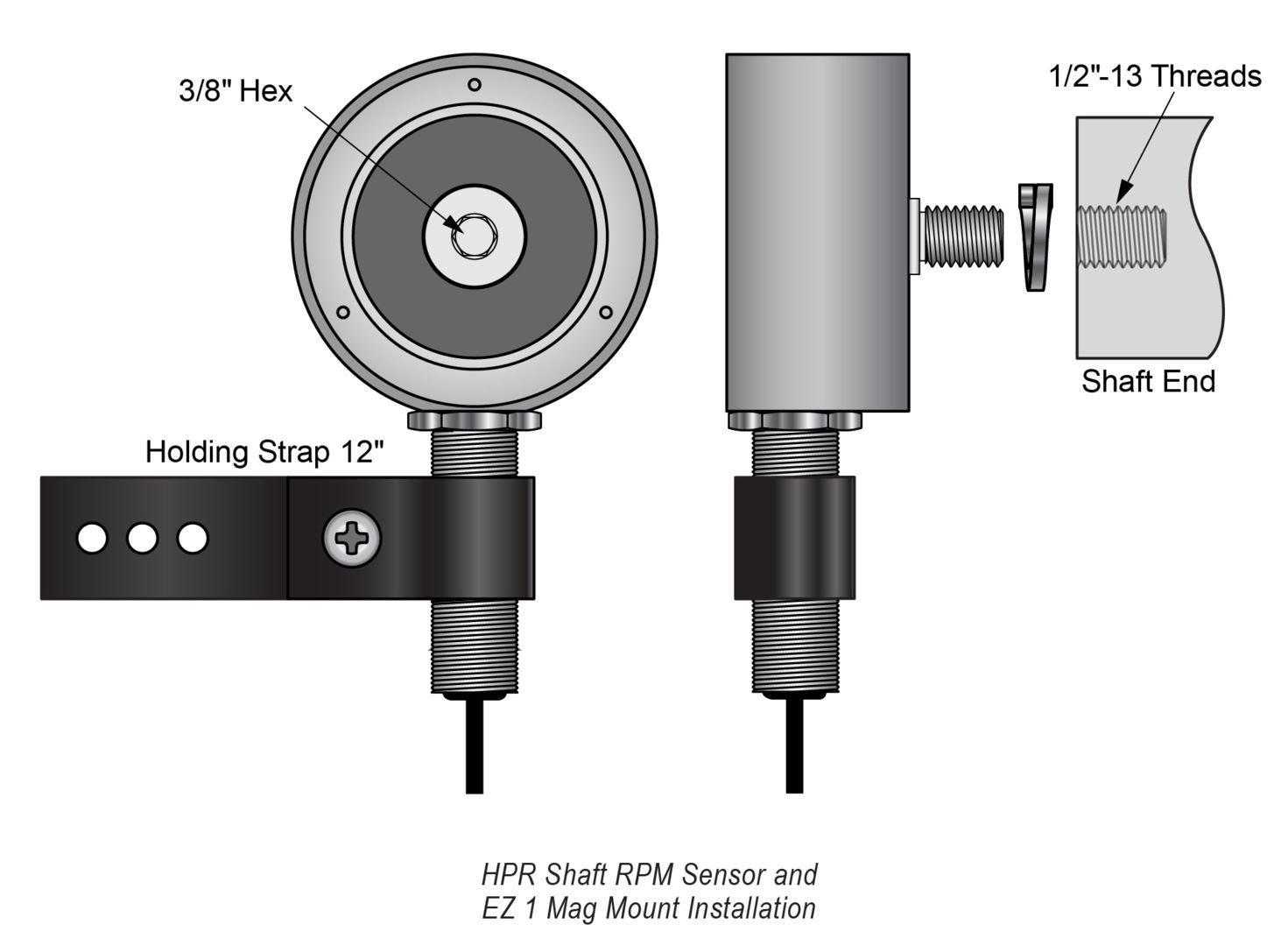

The shaft RPM sensor is typically mounted to the tail shaft of the machine being monitored. The sensor is mounted in the EZ 1 Mag mounting bracket assembly, which attaches to the tail shaft with a 1/2"-13 UNC tapped hole.
