• Easy to use hand-held tool with backlit display
• Quick Connect M12 connectors for fast testing
• Battery powered, USB C rechargeable
• Test HazardPROTM sensor & system performance
• Dedicated Test Function Buttons for Sensors & System Verification
• Timer Function for System Responsiveness Check
• Rechargeable Battery with up to 2 week battery life

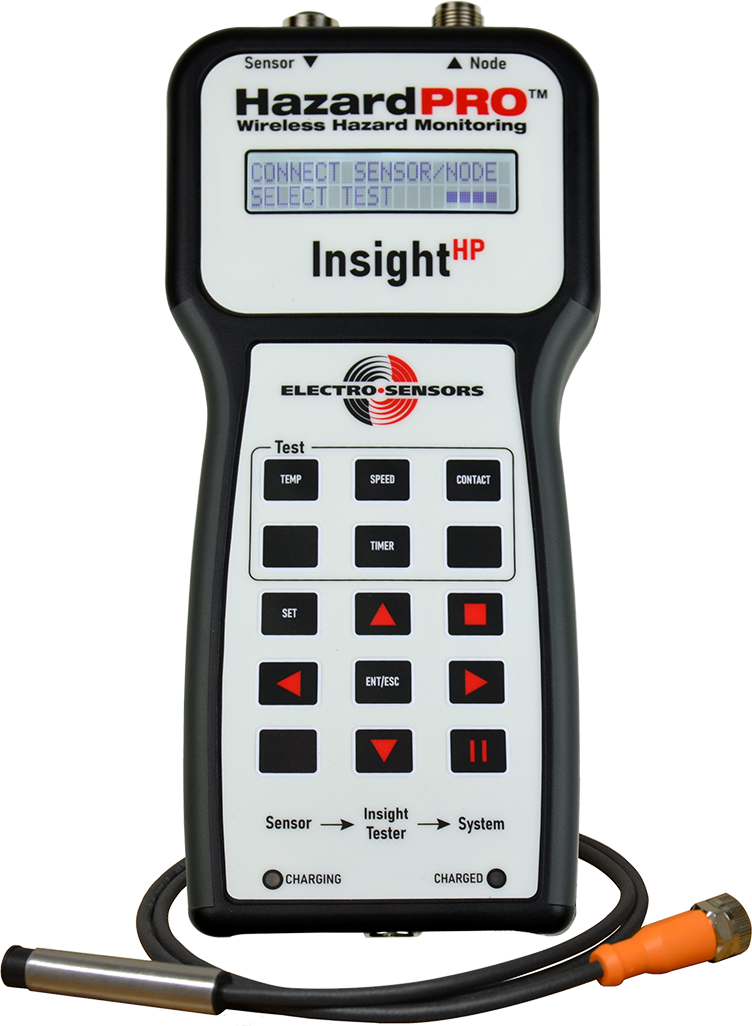

The InsightHP tester is a sensor signal measurement and emulation tool for field testing HazardPRO systems. When connected between a HazardPRO sensor and node input, user-directed tests measure, display and copy the sensor signal, modifying and outputting it to the node for system warni ng and shutdown tests. TEMP and SPEED tests emulate bearing/rub-block heat-up and conveyor slow-down by ramping the output signal from the sensor input level to the set final level at the set rate. Signal ramps may be paused (signal holds constant), resumed and reversed. Paused output signals may also be manually stepped. CONTACT emulates a plugged chute by inverting the contact output relative to the input. TIMER emulates a stopped conveyor by outputting an abrupt zero speed signal, measuring time to alarm.
Two connections are provided: A quick-connect M12 female Sensor input and an M12 male Node output with attached cable providing a quick-connect M12 male Node plug. For sensor tests, the Insight tester connects to a HazardPRO sensor alone. For system tests, the Insight tester connects to both a sensor and its HazardPRO Node input.

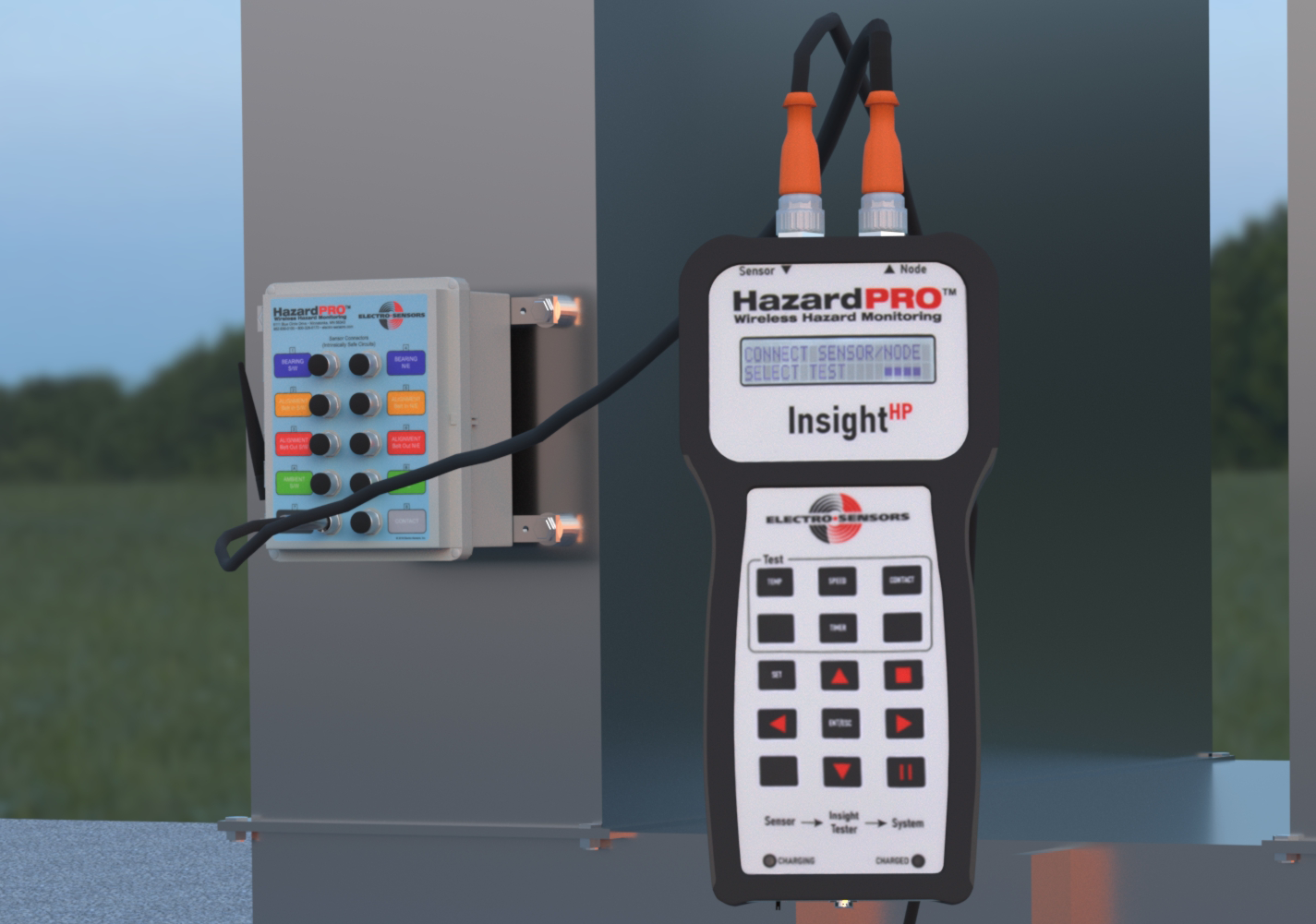

Testing a HazardPRO sensor can be done using one of the three Sensor Test buttons on the InsightHP tester. Plug the sensor cable connector into the InsightHP Sensor input, press the appropriate Test button (Temperature Sensor, Speed Sensor or Contact Sensor) and verify the displayed sensor measurement. HazardPRO system response can be tested by running a system test, disconnect that sensors cable connector from its HazardPRO node input and plug it into the InsightHP quick-connect Sensor input, then plug the InsightHP Node output cable connector into the HazardPRO node input the sensor was previously connected to, press the appropriate Test button (Temperature System, Speed System or Contact System) and follow the displayed instructions.

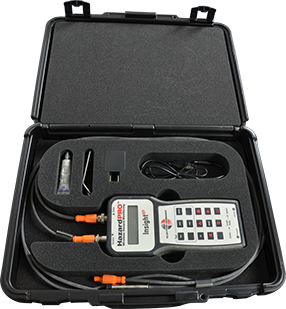

The InsightHP comes with a Kit which includes necessary accessories:
The InsightHP Accessory Kit includes Optional 5m testing cables as well as spare parts:
